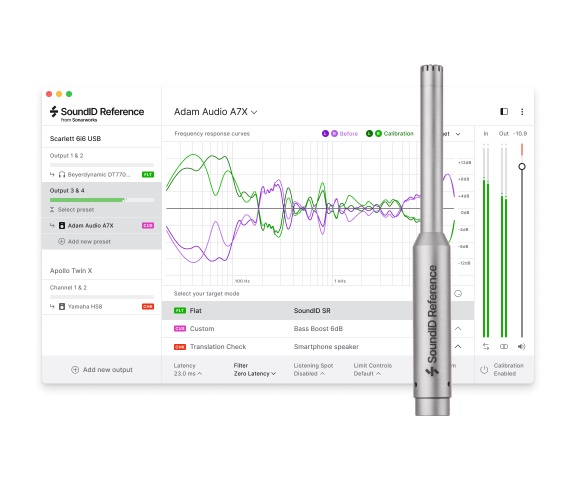

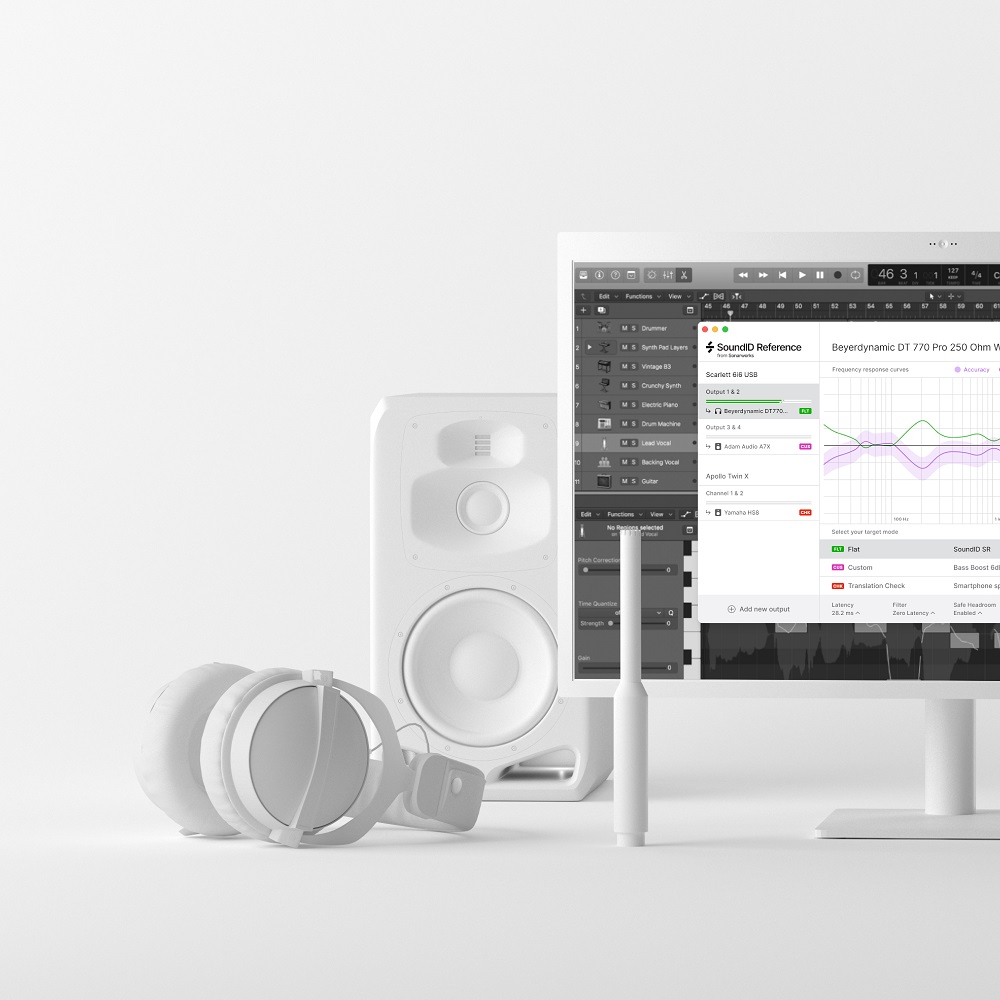

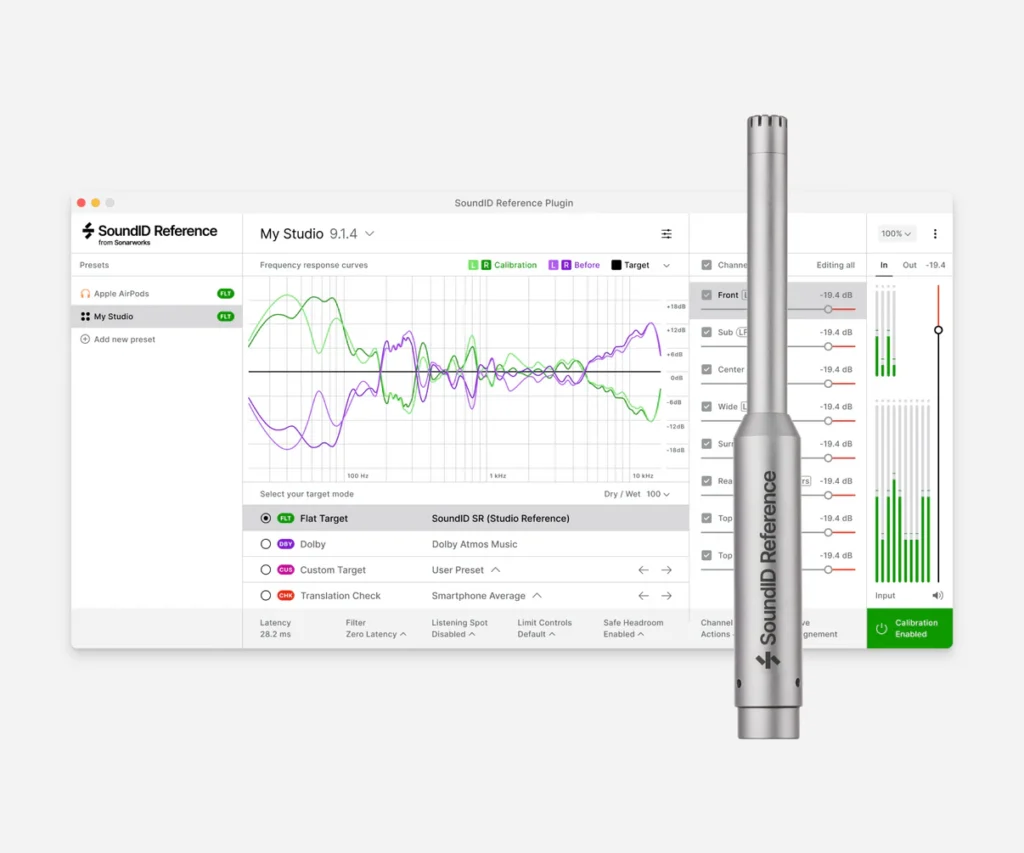

Sonarworks SoundID Reference (Speakers Headphones) with Measurement Mic

In less than 20 minutes you can calibrate your existing studio speakers with a SoundID Reference measurement microphone and calibrate your existing headphones with more than 280 headphone calibration profiles already included in the software as ready-to-use presets. With an applied calibration profile the software sets the frequency response target to be completely flat across all audible frequencies so you can make music that sounds great everywhere. You can also now make custom adjustments to the target curve in real-time with the new custom target feature.

With accurate studio reference sound, you can seamlessly switch between speakers, headphones, and rooms. Finally, ensure continuity of your workflow regardless of distance, your gear or set-up.

Key features

• Speaker calibration: save as many profiles as needed
• Headphone calibration profiles for 280+ supported models
• Custom target: target curve adjustments in real-time
• Translation Check: simulating 20+ different devices and device types for accurate mix translation results everywhere without leaving the workstation
• 3 filter modes: Zero Latency, Mixed and Linear Phase
• Additional DSP processing controls: Mono, Dry/Wet, and Safe Headroom
• MIDI mapping in the SoundID Reference app for various controls
• User Presets in the SoundID Reference app for switching quickly between predefined output device/channel pair combinations

Microphone specification

• Houses pre-polarized electret-condenser capsule
• Frequency response: 20 Hz – 20kHz with supplied calibration profile
• Omnidirectional polar pattern
• Sensitivity is rated at -37dB/Pa (14 mV)
• Self noise: 24 dB
• S/N ratio: 70 dB
• Dynamic range: 106dB
• Maximum SPL: 132 dB SPL

System Requirements

• Mac: macOS 10.12 or later
• PC: Windows 8 (64-bit) or later
• Sonarworks supported or Sonarworks individually calibrated headphones
• 2.0 or 2.1 stereo speaker system
• An audio interface featuring +48v Phantom Power and 44.1 kHz sample rate capability
• Audio hardware setup must consist of a single external hardware device only during the speaker measurement process
• XLR to XLR audio cable
• Stable internet connection
• IMPORTANT! Compatibility with Apple M1 chip machines not guaranteed.
