RME HDSPe Opto-X
₹37,140.00 Original price was: ₹37,140.00.₹33,100.00Current price is: ₹33,100.00.

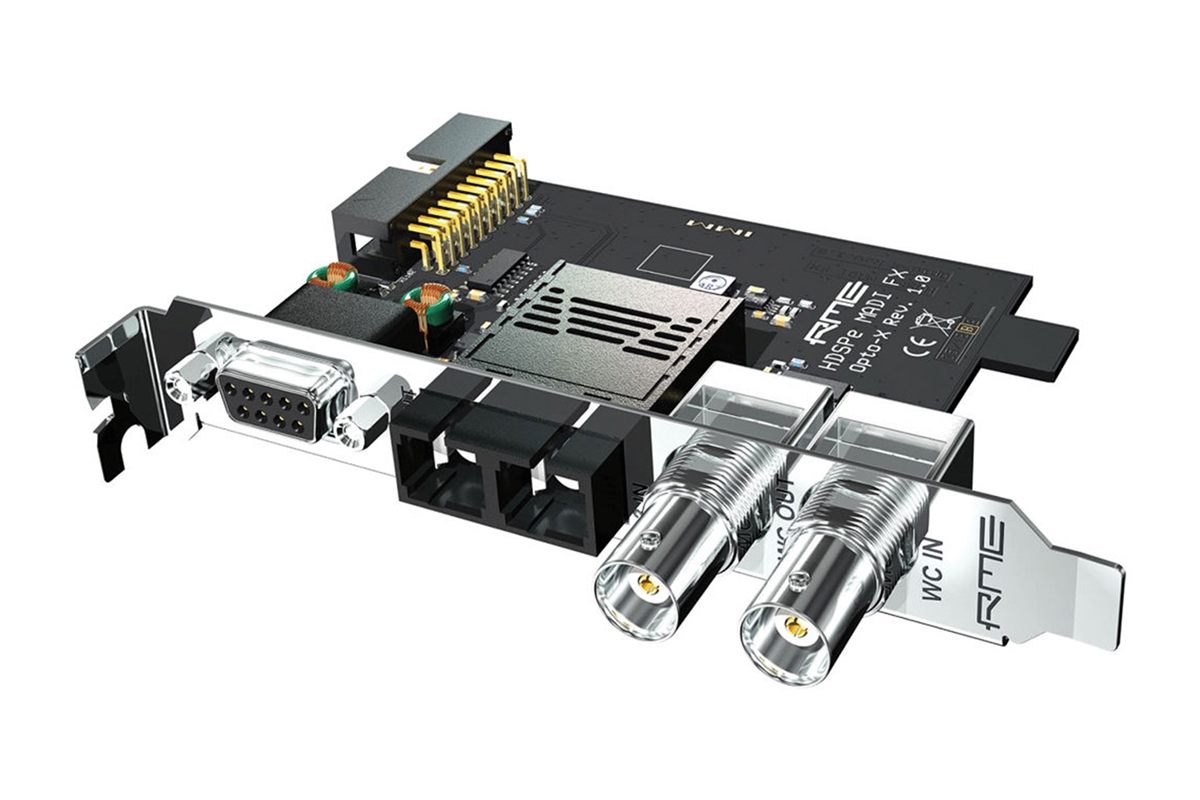

he RME OPTO-X Extension Board works with the HDSPe MADI FX Triple MADI Card with full functionality. This extension board adds more I/O ports to the internal cards of the HDSPe series. It comes with a Word Clock I/O and a D-sub connector for MIDI and AES I/O. The standard coaxial MADI I/O in this extension board is replaced by an optical MADI I/O. The MADI FX offers 3 optical MADI I/Os when used with the OPTO-X Extension Board.
Categories: Audio interfaces/ Sound cards, Studio & Recording Gears
General
Compatible Interfaces |
RME HDSPe Opto-X
|
Connectivity
Analog Audio I/O |
1 x 1/4″ TRS Headphone Output
|
Digital Audio I/O |
2 x SC-Plug Optical MADI Input
2 x SC-Plug Optical MADI Output 1 x BNC Coaxial MADI Input 1 x BNC Coaxial MADI Output 1 x XLR 3-Pin AES3 In or Out (on Included Breakout Cable) |
Host Connection Protocol |
PCIe
|
USB (Non-Host) |
No
|
Sync I/O |
1 x BNC Word Clock Input
1 x BNC Word Clock Output |
Network I/O |
No
|
MIDI I/O |
1 x DIN 5-Pin Input or Output (on Breakout Cable)
|
Performance
Impedance |
Headphone :
75 Ohms |
Digital Audio
Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
|
Bit Depths |
24-Bit
|
Sync Sources |
Word Clock
|
Clocking |
Word Clock:
Input Termination: 75 Ohms (Switchable) Input Voltage: 1.2 V p-p Output Voltage: 4 V p-p Jitter: < 1 ns |
